Programator PIC Pocket

Sursa: www.coolcircuit.com/project/picprog/

Prezentare

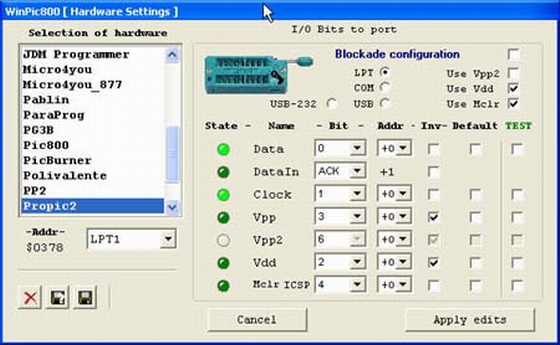

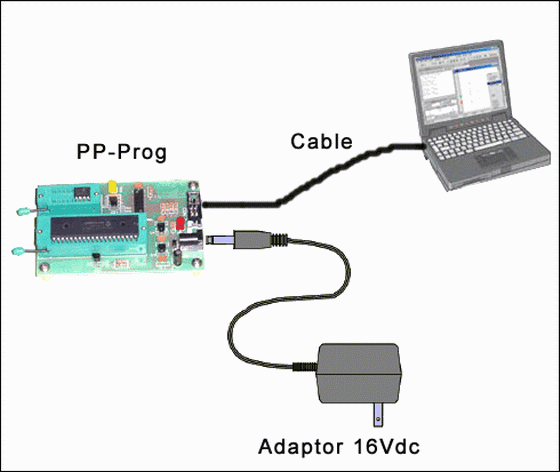

Programatorul foloseste portul paralel, programeaza microcontrolere PIC si suporta mai multe softuri dedicate acestor tipuri de programatoare (EPICWin, WinPic800, P18 etc). Circuitul este prevzut cu doua led-uri: unul indica prezenta tensiunii de alimentare, iar celalat "programare in progres".

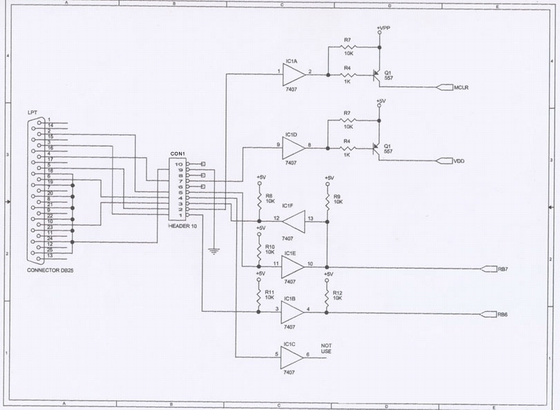

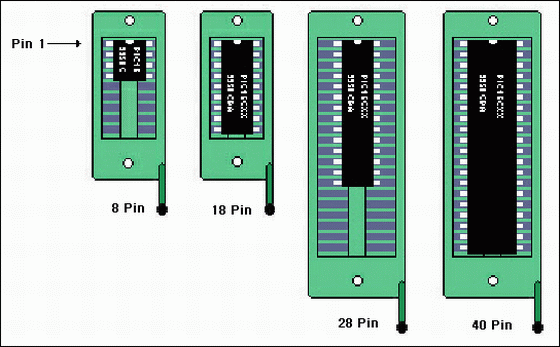

Microcontrolere suportate
  • 6 PIN : 10F200,10F202,10F204,10F206 and more
  • 8 PIN : 12C508, 12C508A, 12C509, 12C509A, 12C671, 12C672, 12CE518, 12CE519, 12CE673, 12CE674, 12F629, 12F675 and more
  • 18 PIN : 1616C554, 16C558, 16C620, 16C620A, 16C621, 16C621A, 16C622, 16C622A, 16C61, 16C71, 16CE623, 16CE624, 16CE625, 16F627, 16F628, 16C84, 16F84, 16F84A, 16C710, 16C711, 16C712, 16C715, 16C716, 16C717, 16F83, 16C505 and more
  • 28 PIN : 16C62, 16C62A, 16C62B, 16C63, 16C63A, 16C66, 16C642, 16C662, 16C72, 16C72A, 16C73, 16C73A, 16C73B, 16C73C, 16C745, 16C76, 16C76A, 16C773, 16F870, 16F872, 16F873, 16F876, 16F873A, 16F876A, 18C242, 18F242, 18C252, 18F252 and more
  • 40 PIN : 16C65, 16C65A, 16C65B, 16C64, 16C64A, 16C64B, 16C67, 16C74, 16C74A, 16C74B, 16C74C, 16C765, 16C77, 16C77A, 16C774, 16F871, 16F874, 16F877, 16F874A, 16F877A, 18F248, 18F258, 18C442, 18F442, 18F448, 18C452, 18F452, 18F458 and more
  • dsPIC dsPIC30F2010,dsPIC30F2011,dsPIC30F2012,dsPIC30F3010,dsPIC30F3011,
    dsPIC30F3012,dsPIC30F3014 and more
  • dsPIC rfPIC12F509,rfPIC12F675
